STM32 定制开发板
STM32 Custom Development Board
工业级STM32 MCU · 多路IO扩展 · 高性价比替代PLC · 内置光耦隔离
让工业控制更简单、更可靠、更省钱！ Industrial STM32 MCU · Multi-channel I/O · Cost-effective PLC Replacement · Built-in Optocoupler Isolation
Industrial control made simpler, more reliable, and more affordable!
让工业控制更简单、更可靠、更省钱！ Industrial STM32 MCU · Multi-channel I/O · Cost-effective PLC Replacement · Built-in Optocoupler Isolation
Industrial control made simpler, more reliable, and more affordable!
STM32 MCU
多路IO
替代PLC
光耦隔离
工业级
STM32 MCU
Multi-channel I/O
PLC Alternative
Optocoupler Isolation
Industrial Grade
📸 板卡细节
📸 Board Details
工业级PCB工艺，布局合理，接口丰富
Industrial-grade PCB craft, rational layout, rich interfaces

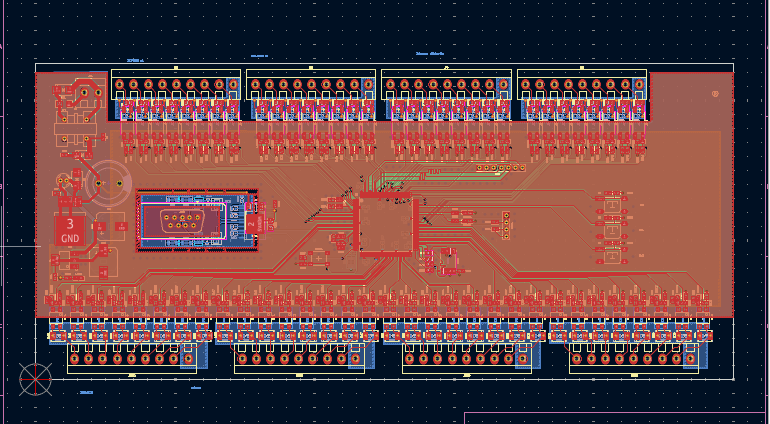

🔍 板卡正面全景
🔍 Board Front Overview

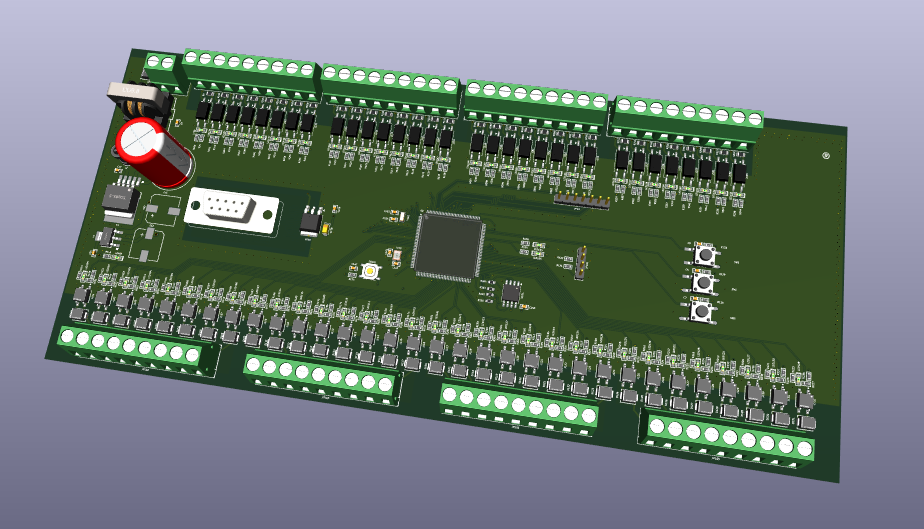

🔌 多路IO接口布局
🔌 Multi-channel I/O Layout

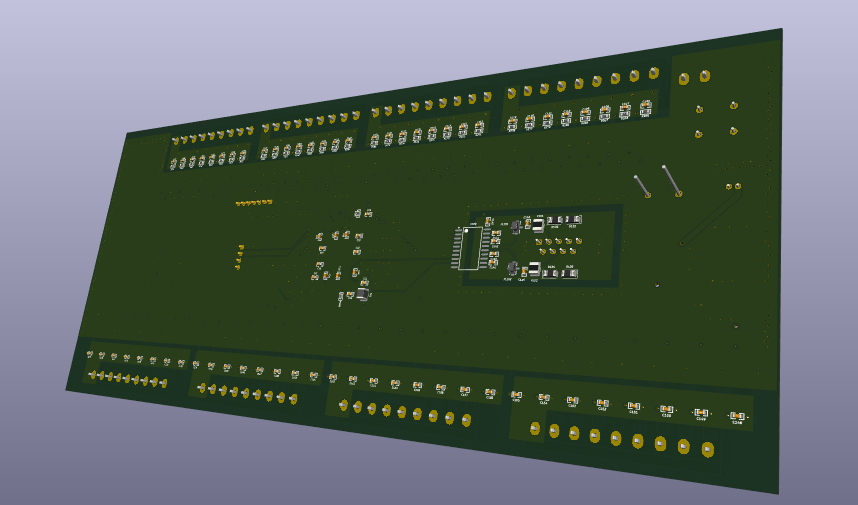

🛡️ 光耦隔离保护设计
🛡️ Optocoupler Isolation Design
⚙️ 核心参数
⚙️ Core Specifications
STM32 MCU
STM32 MCU
搭载高性能STM32微控制器，Cortex-M内核，主频高达72MHz，Flash+RAM充足，支持浮点运算，满足工业实时控制需求。
High-performance STM32 microcontroller, Cortex-M core, up to 72MHz, ample Flash+RAM, floating-point support, meeting industrial real-time control requirements.
多路IO扩展
Multi-channel I/O
提供丰富的数字输入/输出通道，支持多路信号同时采集与控制。IO口全部光耦隔离，抗干扰能力强，可直接接入工业现场信号。
Rich digital I/O channels, supporting simultaneous multi-channel signal acquisition and control. All I/Os optically isolated with strong anti-interference capability, directly connectable to industrial field signals.
光耦隔离
Optocoupler Isolation
所有IO通道内置高速光耦隔离模块，彻底切断地环路，有效保护主控芯片。隔离耐压≥1500Vrms，适配工业现场复杂电磁环境。
All I/O channels feature built-in high-speed optocoupler isolation modules, completely cutting ground loops, effectively protecting the main control chip. Isolation voltage ≥1500Vrms, adapting to complex industrial EMC environments.
替代PLC
PLC Alternative
以STM32为核心，成本远低于传统PLC，支持自定义逻辑编程，灵活适配各种非标设备。比PLC更开放、比继电器更智能，是小型工业控制的理想选择。
STM32-based, far lower cost than traditional PLCs, supports custom logic programming, flexibly adapting to various non-standard equipment. More open than PLC, smarter than relays — ideal for small-scale industrial control.
灵活定制
Flexible Customization
可根据客户需求定制IO数量、通信接口（RS485/CAN/TTL）、功能模块。提供完整原理图、源码和技术支持，加速产品落地。
Customizable I/O count, communication interfaces (RS485/CAN/TTL), and functional modules per customer requirements. Complete schematics, source code, and technical support for faster product launch.
🎯 典型应用场景
🎯 Typical Applications
🏭
小型工业设备控制
Small Industrial Equipment
⚙️
自动化产线改造
Automation Line Upgrade
🚜
农业灌溉控制
Agricultural Irrigation
🏢
楼宇/安防IO采集
Building / Security I/O
🔬
仪器仪表信号隔离
Instrument Signal Isolation
🎛️
替代传统继电器方案
Relay Replacement
🚀 定制流程
🚀 Customization Process
1
需求沟通
Requirement
确定IO数量、通信接口、功能需求
Confirm I/O count, comm interface, functions
2
方案设计
Design
原理图设计 + PCB layout
Schematic + PCB layout
3
打样测试
Prototyping
样板制作 + 功能验证
Board fabrication + validation
4
量产交付
Delivery
批量生产 + 技术支持
Mass production + tech support
✅ 支持定制开发，提供原理图 + 源码 | 量产可提供技术培训支持
✅ Custom development with schematics + source code | Technical training available for mass production
📩 了解更多，联系我们！
📩 Contact Us for More Info!
提供您的需求（IO数量、功能描述、预计用量），我们将为您提供专业的硬件方案和报价。
Share your requirements (I/O count, function description, estimated volume) and we'll provide professional hardware solutions and quotes.
